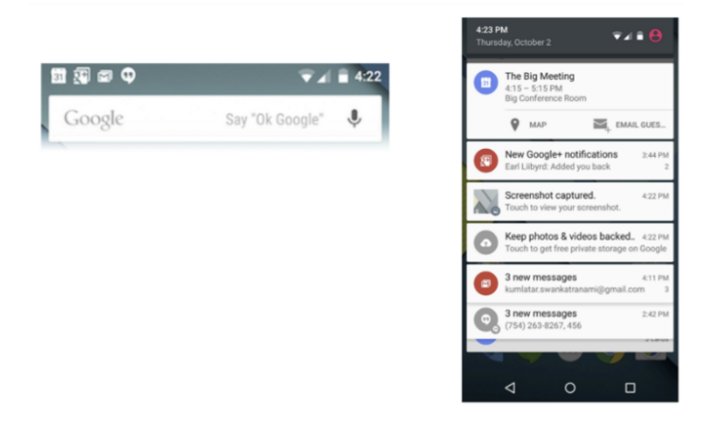

1. 정의
- 앱의 UI와 별도로 사용자에게 앱과 관련한 정보 보여줌
- 알림 터치하여 해당 앱 열기 가능 + 간단한 작업 가능 (ex. 문자 답하기)
- 단말기 상단 부분 표시, 앱 아이콘 배지로도 표시
2. 알림 채널
- 알림 만들기 전에 알림 채널 생성!
- 알림 활성화나 방식 변경 가능
private val myNotificationID = 1
private val channelID = "default"
private fun createNotificationChannel() {
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.O) { // Android 8.0
// 알림 채널 생성
val channel = NotificationChannel(channelID, "default channel",
NotificationManager.IMPORTANCE_DEFAULT)
// 채널에 대한 설명
channel.description = "description text of this channel."
//NotificationManager 객체 가져옴 : 알림 관리+생성 가능
val notificationManager = getSystemService(Context.NOTIFICATION_SERVICE) as NotificationManager
//채널을 NotificationManager에 등록
notificationManager.createNotificationChannel(channel)
}
}
3. 알림 생성
1) NotificationCompat.Builder
- setSmallIcon() : 작은 아이콘
- setContentTitle() : 제목
- setContentText() : 내용
2) NotificationCompat.Builder.build() 호출
- Notification 객체 반환
3) NotificationManagerCompat.notify() 호출해 시스템에 Notification 객체 전달
private val myNotificationID = 1
private fun showNotification() {
val builder = NotificationCompat.Builder(this, channelID)
.setSmallIcon(R.mipmap.ic_launcher)
.setContentTitle("title")
.setContentText("notification text")
.setPriority(NotificationCompat.PRIORITY_DEFAULT)
NotificationManagerCompat.from(this).notify(myNotificationID, builder.build())
}
4. 알림 중요도
1) 채널 중요도
- channelID, "defaultchannel", NotificationManager.IMPORTANCE_DEFAULT
2) 알림 중요
- NotificationCompat.Builder(this,channelID).setPriority(NotificationCompat.PRIORITY_DEFAULT)
3) 순위

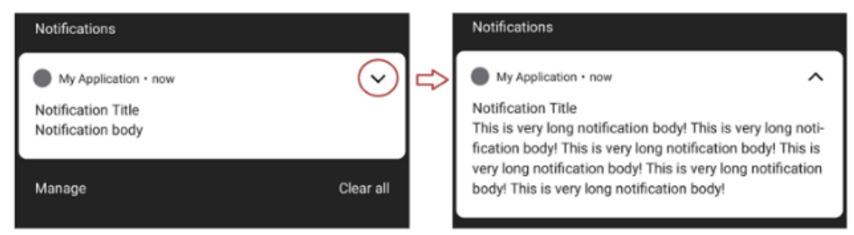

5. 알림 확장뷰 - 긴 텍스트
builder.setStyle(NotificationCompat.BigTextStyle()
.bigText("이것은 긴텍스트 샘플입니다. 아주 긴 텍스트를 쓸때는 여기다 하면 됩니다.이것은 긴텍스트 샘플입니다. 아주 긴 텍스트를 쓸때는 여기다 하면 됩니다.이것은 긴텍스트 샘플입니다. 아주 긴 텍스트를 쓸때는 여기다 하면 됩니다."))

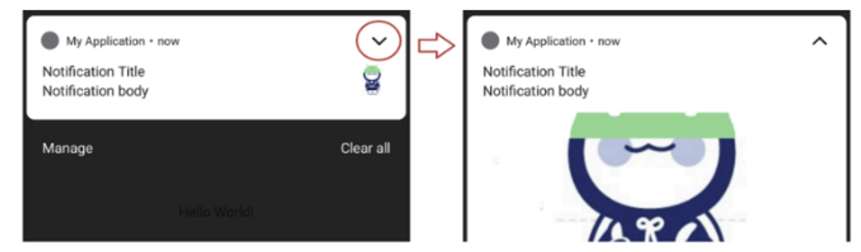

6. 알림 확장뷰 - 이미지
val bitmap = BitmapFactory.decodeResource(resources, R.drawable.android_hsu)
val builder = NotificationCompat.Builder(this, channelID)
.setSmallIcon(R.mipmap.ic_launcher)
.setContentTitle("새로운 알림")
.setContentText("알림이 잘 보이시나요.")
.setPriority(NotificationCompat.PRIORITY_DEFAULT)
.setStyle(NotificationCompat.BigPictureStyle()
.bigPicture(bitmap)
.bigLargeIcon(null))
7. 알림 확장뷰 - 버튼 추가
val intent = Intent(this, TestActivity::class.java)
val pendingIntent = PendingIntent.getActivity(this, 0, intent, 0)
val builder = NotificationCompat.Builder(this, channelID)
.setSmallIcon(R.mipmap.ic_launcher)
.setContentTitle("새로운 알림")
.setContentText("알림이 잘 보이시나요.")
.setPriority(NotificationCompat.PRIORITY_DEFAULT)
.addAction(R.drawable.andorid_hsu, "Action", pendingIntent)
NotificationManagerCompat.from(this).notify(myNotificationID, builder.build())
8. 알림 확장뷰 - 프로그레스바 추가
9. 알림에 액티비티 연결
- 알림을 터치하면 일반 액티비티인 SecondActivity 시작 + 백스택 생성
val intent = Intent(this, SecondActivity::class.java)
val pendingIntent = with(TaskStackBuilder.create(this)){
addNextIntentWithParentStack(intent)
getPendingIntent(0, PendingIntent.FLAG_UPDATE_CURRENT)
}
val builder = NotificationCompat.Builder(this, channelID)
.setSmallIcon(R.mipmap.ic_launcher)
.setContentTitle("새로운 알림")
.setContentText("알림이 잘 보이시나요.")
.setPriority(NotificationCompat.PRIORITY_DEFAULT)
.setContentIntent(pendingIntent)
.setAutoCancel(true)
NotificationManagerCompat.from(this).notify(myNotificationID, builder.build())
알림 예제
activity_main.xml
<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context=".MainActivity">
<Button
android:id="@+id/notificationButton"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="알림 보내기"
app:layout_constraintBottom_toBottomOf="parent"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toTopOf="parent" />
</androidx.constraintlayout.widget.ConstraintLayout>
activity_second.xml
<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context=".SecondActivity">
<TextView
android:id="@+id/textView"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="두번째 액티비티"
app:layout_constraintBottom_toBottomOf="parent"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toTopOf="parent" />
</androidx.constraintlayout.widget.ConstraintLayout>
MainActivity
class MainActivity : AppCompatActivity() {
private lateinit var binding : ActivityMainBinding
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
binding = ActivityMainBinding.inflate(layoutInflater)
setContentView(binding.root)
binding.notificationButton.setOnClickListener {
notification()
}
}
fun notification(){
val manager = getSystemService(NOTIFICATION_SERVICE) as NotificationManager
val builder: NotificationCompat.Builder
//알림 채널 생성
if(Build.VERSION.SDK_INT >= Build.VERSION_CODES.O){
//버전 26 이상
val channelId = "one-channel"
val channelName = "My Channel One"
val channel = NotificationChannel(
channelId,
channelName,
NotificationManager.IMPORTANCE_DEFAULT
).apply {
//채널에 대한 다양한 정보 설정
description = "My Channel One Description"
// 앱의 기본 알림 소리를 가져옴
val uri = RingtoneManager.getDefaultUri(RingtoneManager.TYPE_NOTIFICATION)
// 소리 속성 설정
val audioAttributes = AudioAttributes.Builder()
.setContentType(AudioAttributes.CONTENT_TYPE_SONIFICATION) //소리의 콘텐츠 유형 설정 : 효과음에 적합
.setUsage(AudioAttributes.USAGE_ALARM) //소리 사용 용도
.build() //AudioAttribute 객체 생성
setSound(uri, audioAttributes) //알림에 사용할 소리 지정
enableVibration(true) //진동
}
//채널을 NotificationManager에 등록
manager.createNotificationChannel(channel)
//채널을 이용하여 builder 생성
builder = NotificationCompat.Builder(this, channelId)
}else{
//26버전 이하
builder = NotificationCompat.Builder(this)
}
val bitmap = BitmapFactory.decodeResource(resources, R.drawable.ic_launcher_background)
val intent = Intent(this, SecondActivity::class.java)
// 플래그 설정 (여러 개의 상태나 동작 조합) : 새로운 작업으로 액티비티를 실행, 기존 작업의 모든 이전 액티비티 제거
intent.flags = Intent.FLAG_ACTIVITY_NEW_TASK or Intent.FLAG_ACTIVITY_CLEAR_TASK
// PendingIntent : 다른 컴포넌트가 다른 컴포넌트에게 특정한 작업을 수행하도록 지연, 나중에 실행할 수 있도록 하는 객체
// 주로 알림 클릭했을 때 앱 내부의 특정 화면으로 이동
//PendingIntent.FLAG_UPDATE_CURRENT : 이미 생성된 PendingIntent가 있다면, 해당 PendingIntent를 업데이트하여 새로운 데이터로 갱신
//PendingIntent.FLAG_IMMUTABLE: 생성된 PendingIntent를 불변(immutable)하게 만듦, PendingIntent에 저장된 데이터나 동작을 변경 할 수 X
val pendingIntent = PendingIntent.getActivity(this, 0, intent, PendingIntent.FLAG_UPDATE_CURRENT or PendingIntent.FLAG_IMMUTABLE)
builder.run{
setSmallIcon(R.mipmap.ic_launcher)
setWhen(System.currentTimeMillis())
setContentTitle("새로운 알림")
setContentText("알림이 잘 보이시나요.")
setStyle(NotificationCompat.BigTextStyle()
.bigText("이것은 긴텍스트 샘플입니다. 아주 긴 텍스트를 쓸때는 여기다 하면 됩니다.이것은 긴텍스트 샘플입니다. 아주 긴 텍스트를 쓸때는 여기다 하면 됩니다.이것은 긴텍스트 샘플입니다. 아주 긴 텍스트를 쓸때는 여기다 하면 됩니다."))
setLargeIcon(bitmap)
addAction(R.mipmap.ic_launcher, "Action", pendingIntent)
}
//알림 표시 : 11 (고유한 숫자값), builder.build() (실제로 생성해 전달)
manager.notify(11, builder.build())
}
}
SecondActivity
package com.example.notification
import androidx.appcompat.app.AppCompatActivity
import android.os.Bundle
class SecondActivity : AppCompatActivity() {
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
setContentView(R.layout.activity_second)
}
}
